Class I microbiological hotels can adequately protect the damage caused by aerosol pollution and can effectively protect personnel and the environment. It is the negative pressure air inlet in the front window of the class I biological safety cabinet, which can protect the operators, and the exhaust air passes through the HEPA filter which can protect the environment. The Class I biological safety cabinet can be placed anywhere with its simple and portable structure.
Advantage:
1. UV lamp for sterilization.
2. Soft touch control panel, LCD display.
3. Energy saving, high efficiency, low noise.
4. With memory function in case of power failure.
5. 304 stainless steel one-piece workbench, easy to clean.
6. Stable air flow system; protecting the person and the environment.
Role models:

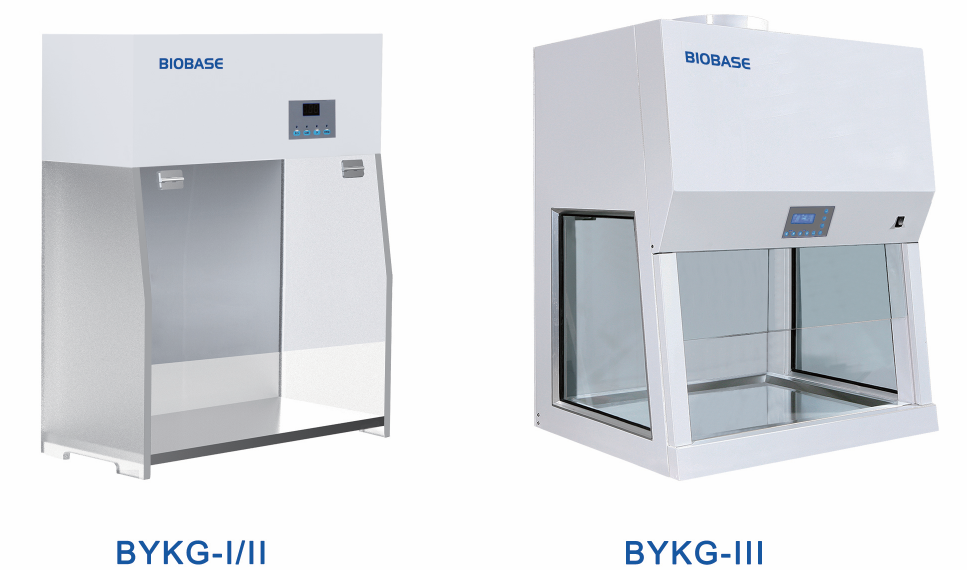

Model | BYKG-I | BYKG-II | BYKG-III | BYKG-V |
External size (L*W*H) | 550*395*730mm | 700*550*900mm | 900*713*1250mm | 1100*697*1900mm |
Internal size (l*w*h) | 540*385*440mm | 680*540*500mm | 800*635*600mm | 968*625*630mm |
HEPA filter | 99.999% efficiency at 0.3 μm |
Airflow speed | >0.3 m/s | 0.75~1.0m/s |
>0.3 m/s
| 0.75-1.0 m/s |
Noise | ≤60dB | ≤55dB | ≤60dB | ≤67dB |
Illuminating lamp | 4W*1 LED lamp | 8W*1 LED lamp | 8W*1 LED lamp | 12W*2 Fluorescent lamp |
UV lamp | 15W*1 | 20W*1 | 20W*1 | 20W*1 |
253.7 nanometer emission for the most effective decontamination BYKG-III has UV timer function and the display could indicate the UV lifetime. |
Energy consumption | 150W | 160W | 400W | 350W |
The height of the work surface | / | / | / | 750 mm |
Caster | / | / | / | Universal roller |
Main body construction | PMMA | Cold rolled steel with antibacterial powder coating |
Worktable | 304 stainless steel |
Power supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
Standard accessory | LED lamp, UV lamp*2 | Fluorescent lamp, UV lamp*2, base stand |
Optional accessory | Electric height adjustable base support |
Gross weight | 38 kg | 68 kg | 147 kg | 185 kg |
Package size (l*w*h) | 710*550*950mm | 870*720*1170mm | 1060*870*1440mm | 1270*880*2230mm |
Fluorescent lamp 1pc.
UV lamp 2 pcs.
Basic support 1pc.
